The single axis rate turntable is used for position rate function testing of gyroscope components and accelerometers, requiring stable performance/reliable operation/simple operation, and adjustable triangular support for the turntable. The axial speed turntable mainly has the following functions:
Equipped with position control function, speed status control and speed display function, and rocking function, etc.
Part No, :
T1P300PR-1、T1G450PR-1、T1G650PR-1、T1SD300PR-1、T1G1000PR-2Order(MOQ) :
1Product Series and Parameters
| Parameter | T1P300PR-1 | T1G450PR-1 | T1G650PR-1 | T1SD300PR-1 | T1G1000PR-2 |
| Structural type | Integrated | Vertical | Vertical | Stand-up and lie down | Vertical |
| Table size | φ300 | φ450 | φ650 | φ300 | φ1000 |
| Maximum load weight | 5kg | 5~40kg | 5~40kg | 5kg | 100~1000kg |
| Mesa flatness | 0.02mm | 0.02mm | 0.05mm | 0.02mm | 0.1mm |
| Table jumping | 0.02mm | 0.02mm | 0.05mm | 0.02mm | 0.1mm |
| Rotation accuracy | ±1″~± 5″ | ±1″~± 5″ | ±2″~± 5″ | ±1″~± 5″ | ±5″~± 10″ |
| Angular position range | 0~360° continuous rotation | 0~360° continuous rotation | 0~360° continuous rotation | 0~360° continuous rotation | 0~360° continuous rotation |
| Angular position accuracy | ±1″~± 10″ | ±1″~± 10″ | ±3″~± 10″ | ±2″~± 10″ | ±0.05°~±0.5° |
| Repetitive angular position | ±1″~± 7″ | ±1″~± 7″ | ±2″~± 8″ | ±1″~± 7″ | ±0.03°~±0.4° |
| Angular rate range | 0.001°~1000°/s | 0.001°~1200°/s | 0.001°~1000°/s | 0.001°~600°/s | 0.05°~150°/s |
| Angular rate accuracy and stability | (1° average) 5×10-3 (10° average) 5×10-4 (360° average) 5×10-5 |
(1° average) 5×10-3 (10° average) 5×10-4 (360° average) 5×10-5 |
(1° average) 5×10-3 (10° average) 5×10-4 (360° average) 5×10-5 |
(1° average) 5×10-3 (10° average) 5×10-4 (360° average) 5×10-5 |
(1° average) 5×10-3 (10° average) 5×10-4 (360° average) 5×10-5 |
| Maximum angular acceleration | 10000°/s² | 4000°/s² | 3000°/s² | 1000°/s² | 200°/s² |
| Way of working | Speed, Position, Sway | Speed, Position, Sway | Speed, Position, Sway | Speed, Position, Sway | Speed, Position, Sway |
| Slip ring | 30 rings (optional) | 30 rings (optional) | 30 rings (optional) | 30 rings (optional) | 30 rings (optional) |
| MTBF | ≥2000 | ≥2000 | ≥2000 | ≥2000 | ≥2000 |
| Bandwidth | 10Hz (adjustable) | 10Hz (adjustable) | 10Hz (adjustable) | 10Hz (adjustable) | 10Hz (adjustable) |
| Loading size | φ250*250 | φ400*350 | φ600*550 | φ250*250 | φ800*500 |
| Continuous working hours | ≥ 12 hours | ≥ 12 hours | ≥ 12 hours | ≥ 12 hours | ≥ 12 hours |
| Communication interface | RS422/RS232/Ethernet (optional) | RS422/RS232/Ethernet (optional) | RS422/RS232/Ethernet (optional) | RS422/RS232/Ethernet (optional) | RS422/RS232/Ethernet (optional) |
Production process

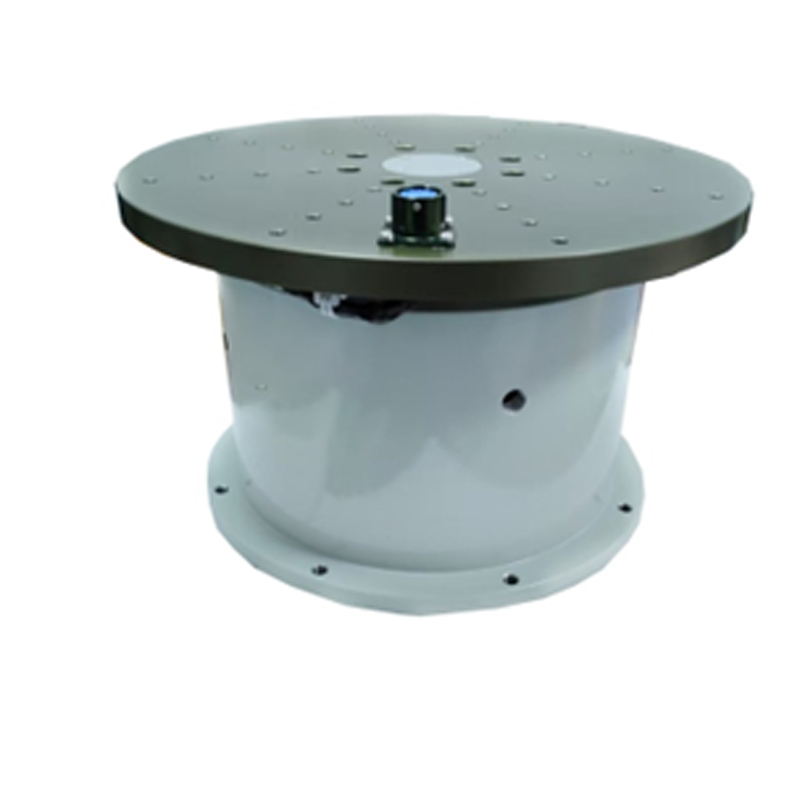

Product Pictures

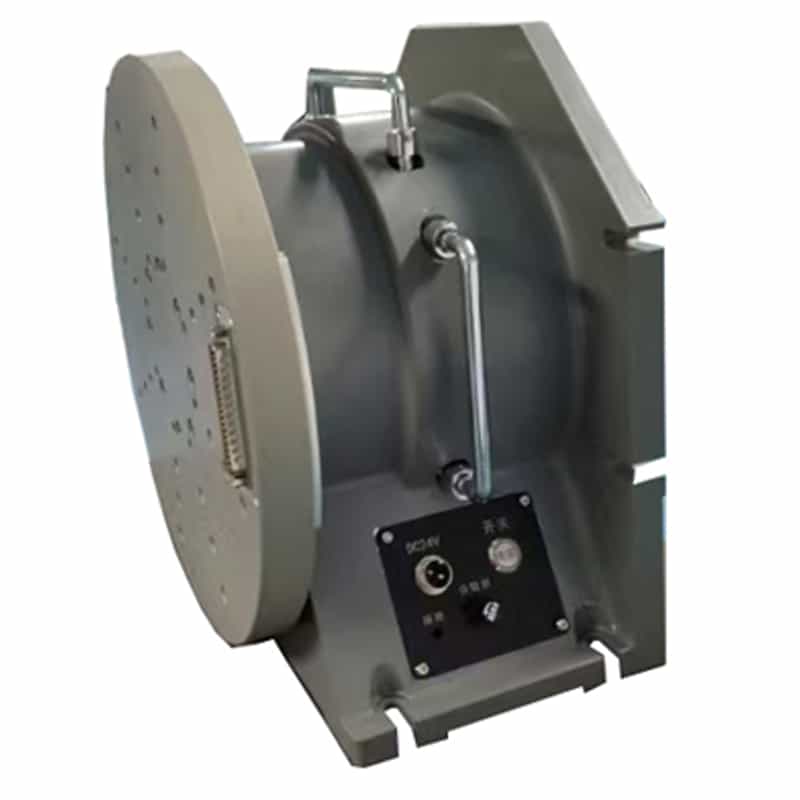

Stand up and lie down

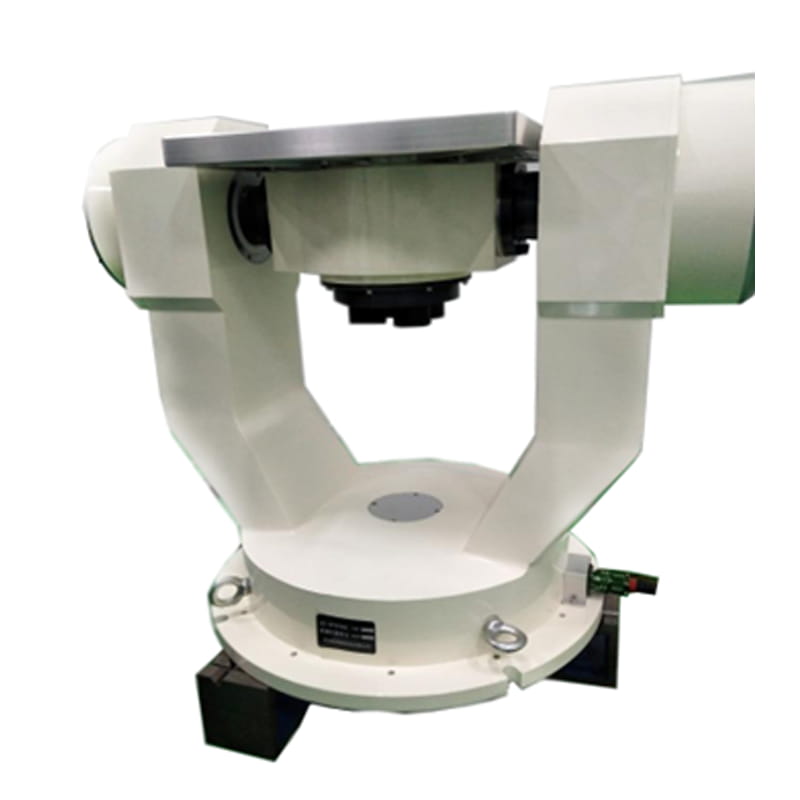

Vertical type I

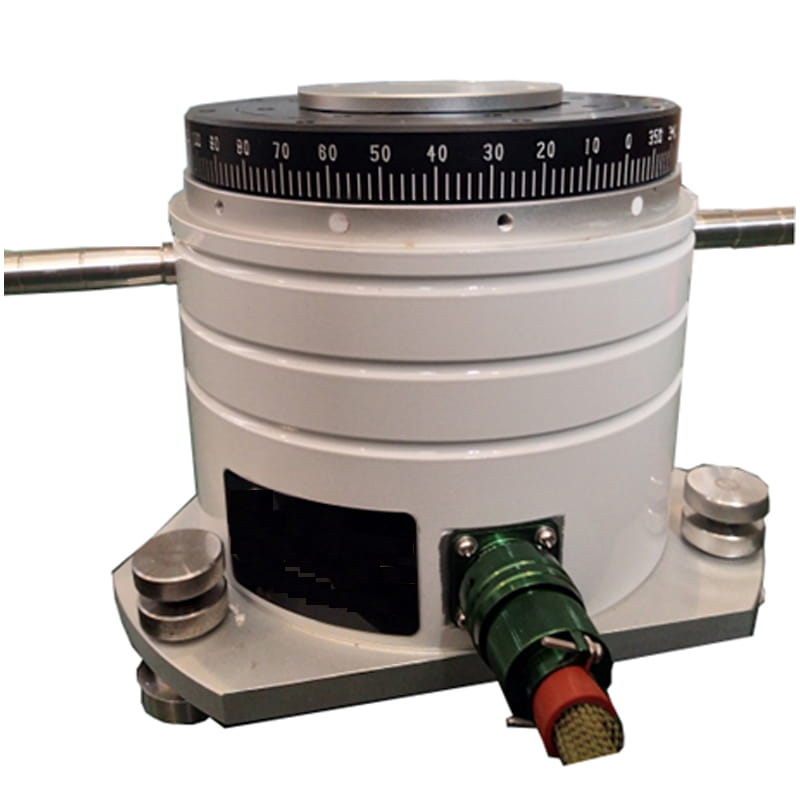

Vertical type II

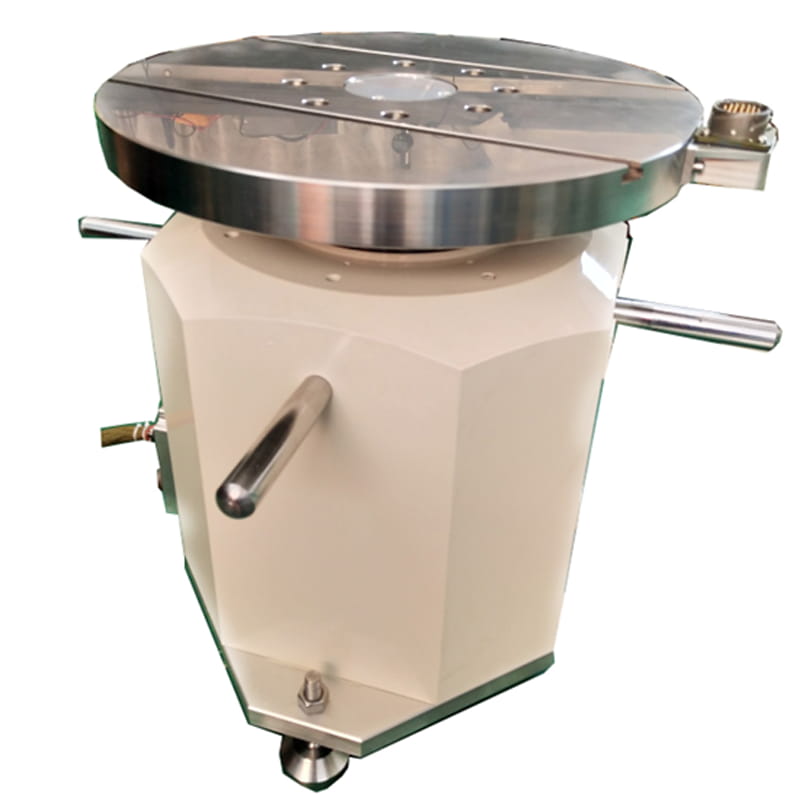

Vertical type III
Application Scenarios
FAQ
