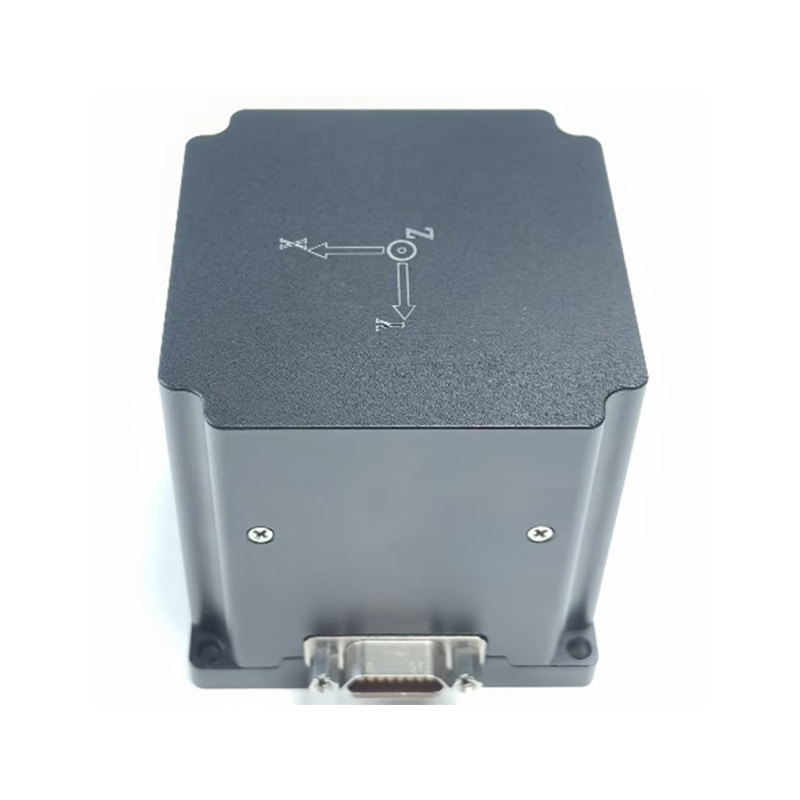

The G-F3X35 fiber optic gyroscope is a low to medium precision, miniaturized tri-axis gyroscope, as shown in Figure 1. It has the advantages of small size, light weight, no moving parts, high reliability, and long service life. Its digital output is convenient for system integration and can be applied in fields such as aviation, aerospace, ships, weapons, coal mine measurement, and automotive electronics.
Part No, :
G-F3X35Order(MOQ) :
1Connector :
RS422Protection Level :
IP67Product Series and Parameters
| Parameters | Unit | Indicator |
| Gyroscope zero bias | °/h | ≤0.3 |
| Zero bias stability at room temperature (10s, 1 σ) | °/h | ≤0.3 |
| Room temperature zero bias repeatability (10s, 1 σ) | °/h | ≤0.3 |
| High and low temperature zero bias stability (10s, 1 σ) | °/h | ≤0.7 |
| High and low temperature zero bias repeatability (10s, 1 σ) | °/h | ≤0.7 |
| Random walk coefficient | °/h1/2 | ≤0.02 |
| Full temperature zero bias stability | °/h | ≤1.5 |
| Non linearity of scaling factor at room temperature | ppm | ≤50 |
| Asymmetric scaling factor at room temperature | ppm | ≤50 |
| Room temperature scale factor repeatability | ppm | ≤50 |
| Full temperature scale factor repeatability | ppm | ≤200 |
| measuring range | °/s | -500~+500 |
| resolution | °/h | ≤0.5 |
| threshold | °/h | ≤0.5 |
| Start Time | S | 5 |
| weight | g | 270 |
| operation temperature | ℃ | -40~+60 |
| storage temperature | ℃ | -50~+75 |
Production process
Product dimension
The appearance and installation dimensions of the G-F3X35 fiber optic gyroscope are shown in Figure 2.
Figure 2 Appearance and installation dimensions of G-F3X35 fiber optic gyroscope
Application Scenarios
FAQ
Q1: What is the measurement accuracy of this fiber optic gyroscope?
A:G-F3X35 is available in three accuracy levels, up to a bias stability of ≤0.003°/h (Type C), making it suitable for scenarios with extremely high requirements for inertial measurement, such as precision navigation and attitude control systems.
Q2: Does this product support tri-axis output?
A: Yes, G-F3X35 is a three-axis fiber optic gyroscope that can simultaneously output angular velocity increment data in the X, Y, and Z directions to meet the needs of three-dimensional posture perception.
Q3:What are the communication interfaces and protocols?
A: The product adopts RS-422 full-duplex asynchronous serial communication with a communication baud rate of 921.6kbps, supports external synchronization signal triggering, has a clear data frame structure, and is easy to integrate.
